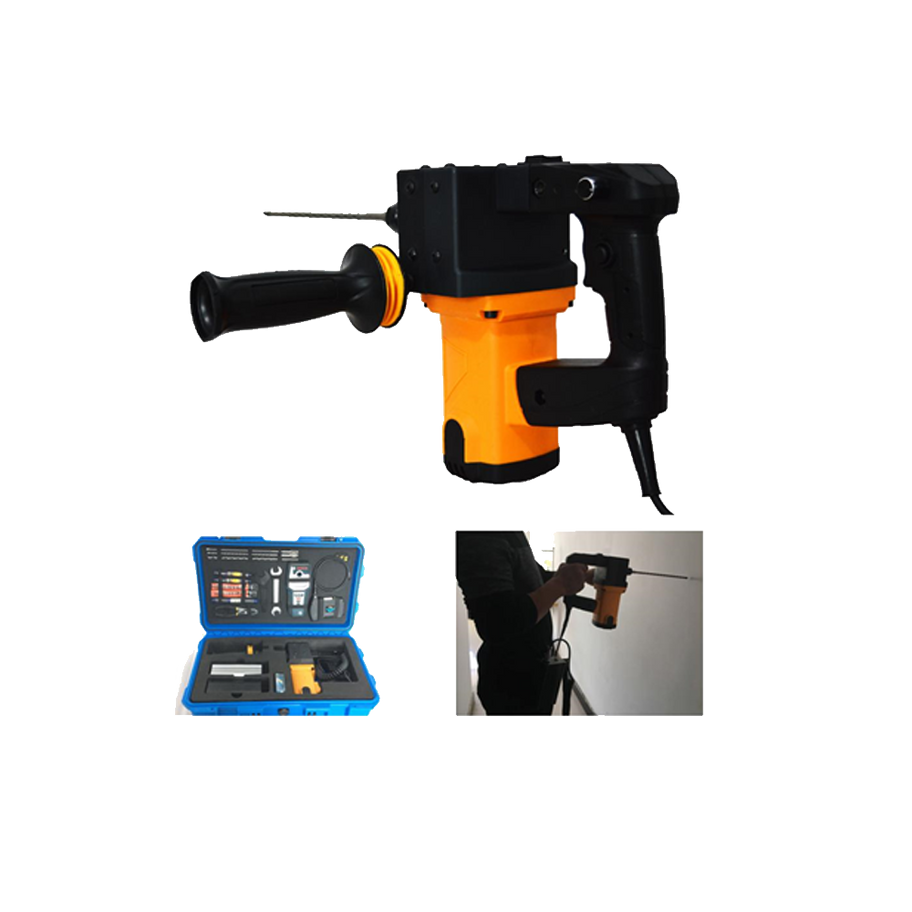

Silent electric drill

1. Product profile:

The silent electric drill is composed of three parts: power source, main machine and drill bit. It is used to detect the action of criminals in the next room. It is mainly used for anti-hijacking aircraft and anti-terrorism investigation mission and so on in police and armed police. Police officers can drill a hole in a wall without being detected by criminals, and then go deep into the snake’s eye to observe movement in the house. It is a special equipment used for detection operations in various hazardous environment.

2. Features:

1) It is adopted with integrated design, and do not need to be installed. According to the principle of human mechanics design, it is provided with double functions of propulsion and impact. Adopted with hand-held propulsion design concept, one handle is used to move forward, and the other handle continuously provides force to easily drill hole.

2) Positive and negative rotation, adjustable;

3) Power supply: The external power supply can be slanted on the waist, and the working time of each power supply is more than 6 hours.

4) It is provided with LED detector light, and can work in dark conditions.

5) Drilling types: It can be used for reinforced concrete wall and brick wall, metal panel wall, glass curtain wall, ceramic curtain wall and wood products, etc.

3. Main tactical and technical indexes:

1) Installation time: ≤ 30s.

2) No-load noise: ≤28.5DB

3) Rated power of drilling motor: 180W, RPM 0-260 adjustable;

4) Drilling diameter: main drill 6, 8, 10mm bit for concrete wall, provided with 2mm micro bit;

5) It is equipped with an endoscope: screen 2.7” color LCD display, the screen can be flipped, with 7-language switching function. Camera: 5.5mm diameter, hose diameter: 7.0mm, hose length: 100cm, resolution: 300000 pixels, auxiliary light with 4 highlighted LEDs, and battery operating time 6 hours.

6) Size of main machine: 230×125×240mm

7) Weight of main machine: ≤3.8kg, with battery: ≤5kg
